IoT Platform Boards
Discover our fully customizable IoT modules designed for seamless integration

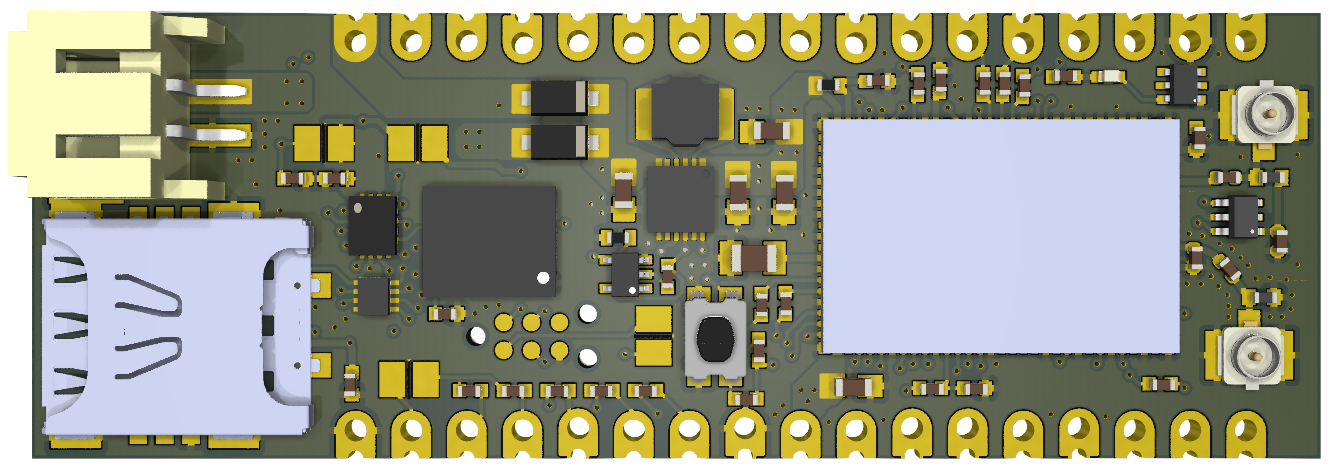

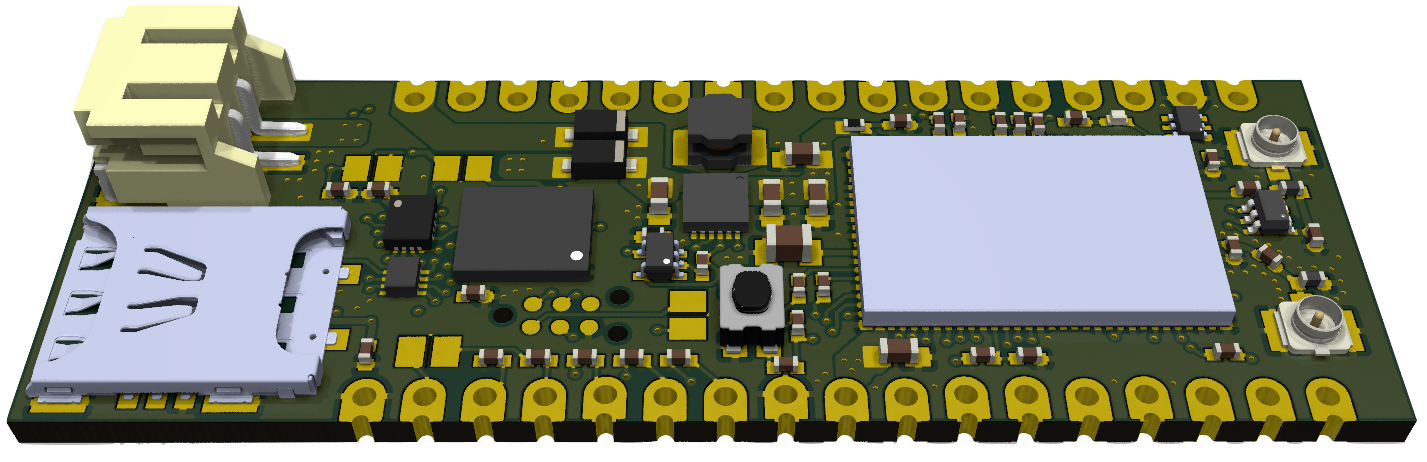

CaaM Mini
The low-cost essentials
- 64 MHz Arm Cortex-M33
- 1 MB flash + 256 KB RAM
- LTE-M and NB-IoT Connectivity
- Low-Power GNSS
- Arm TrustZone + Arm CryptoCell
- Integrated SIM Chip
- For battery-powered applications
Use Cases: Smart devices, low-power applications, and prototyping

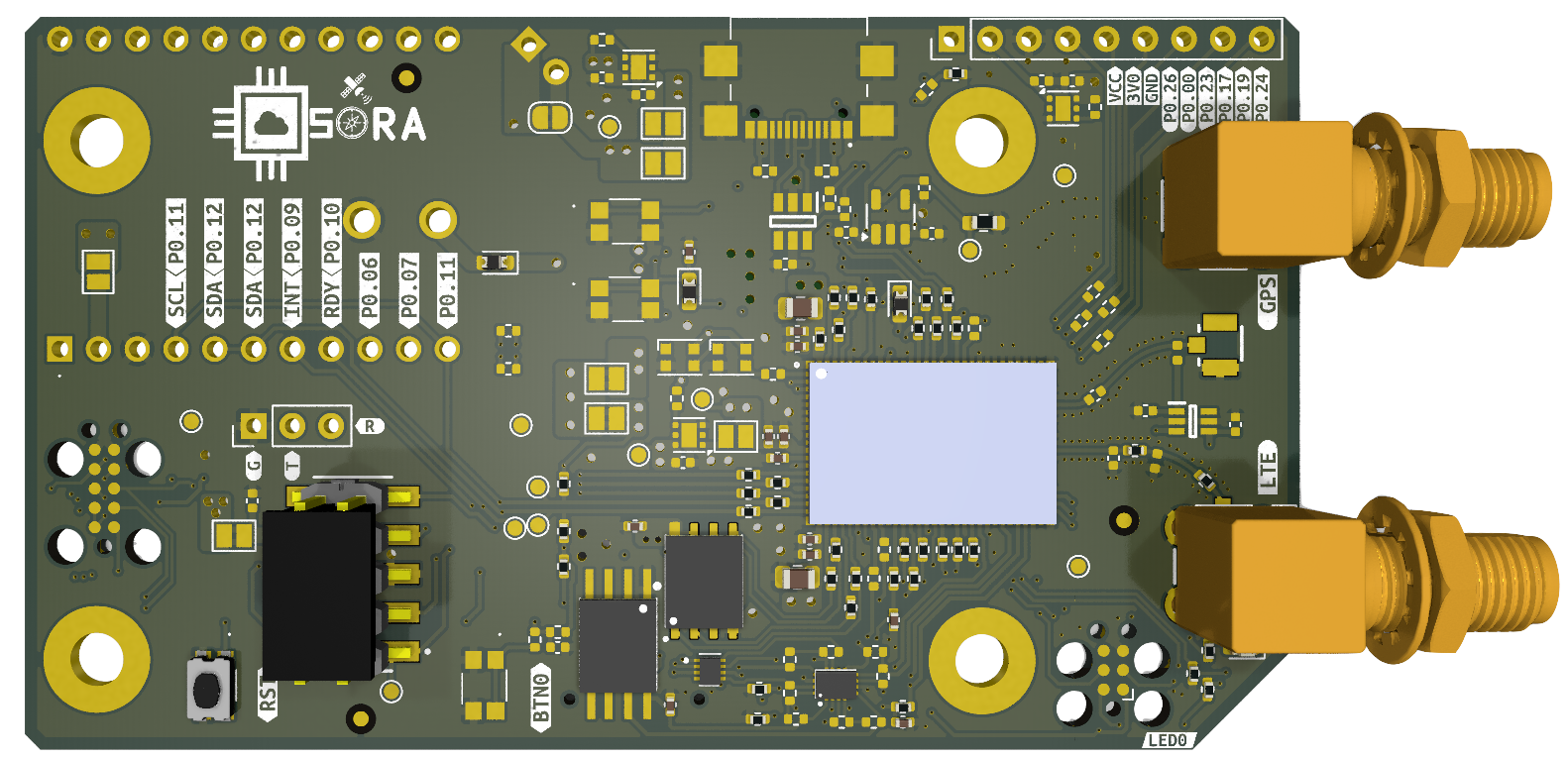

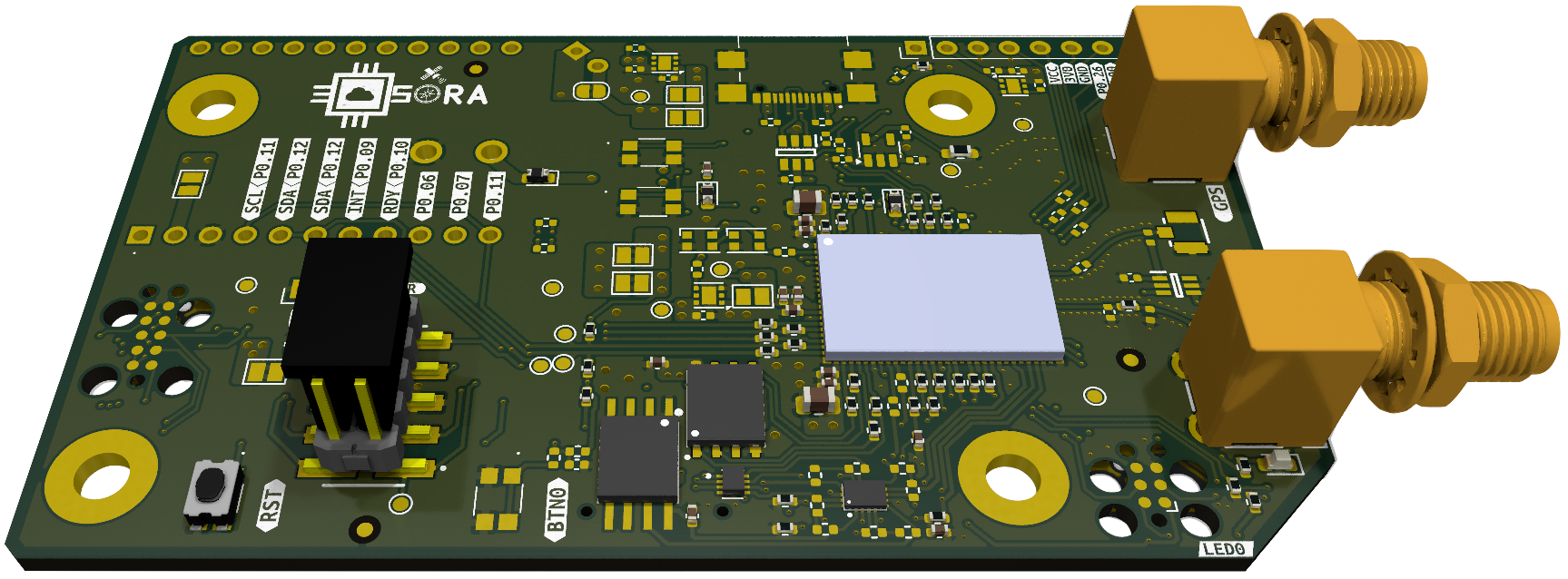

CaaM Sora
For telematic applications
- 64 MHz Arm Cortex-M33
- 1 MB flash + 256 KB RAM
- LTE-M and NB-IoT Connectivity
- Low-Power GNSS
- GNSS with Dead Reackoning
- On-Board Flash Storage
- Integrated SIM Chip
- Industrial Grade
Use Cases: Fleet tracking, industrial devices, and telematics

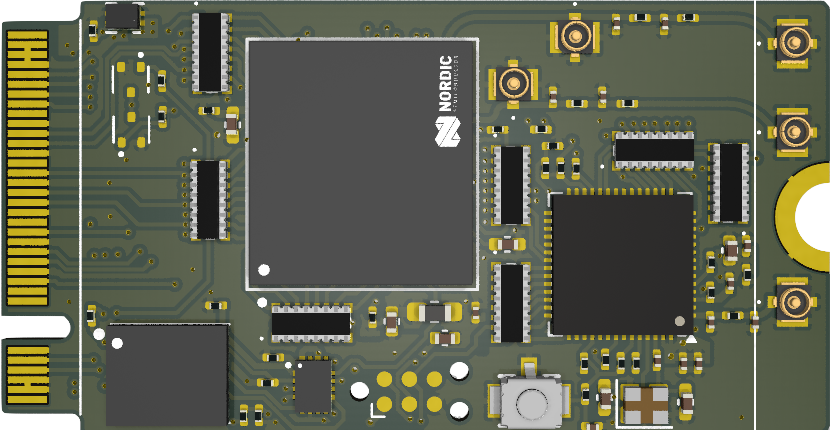

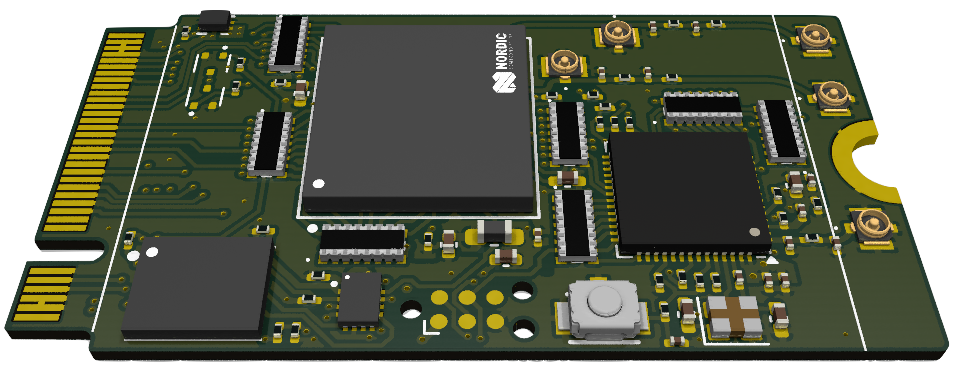

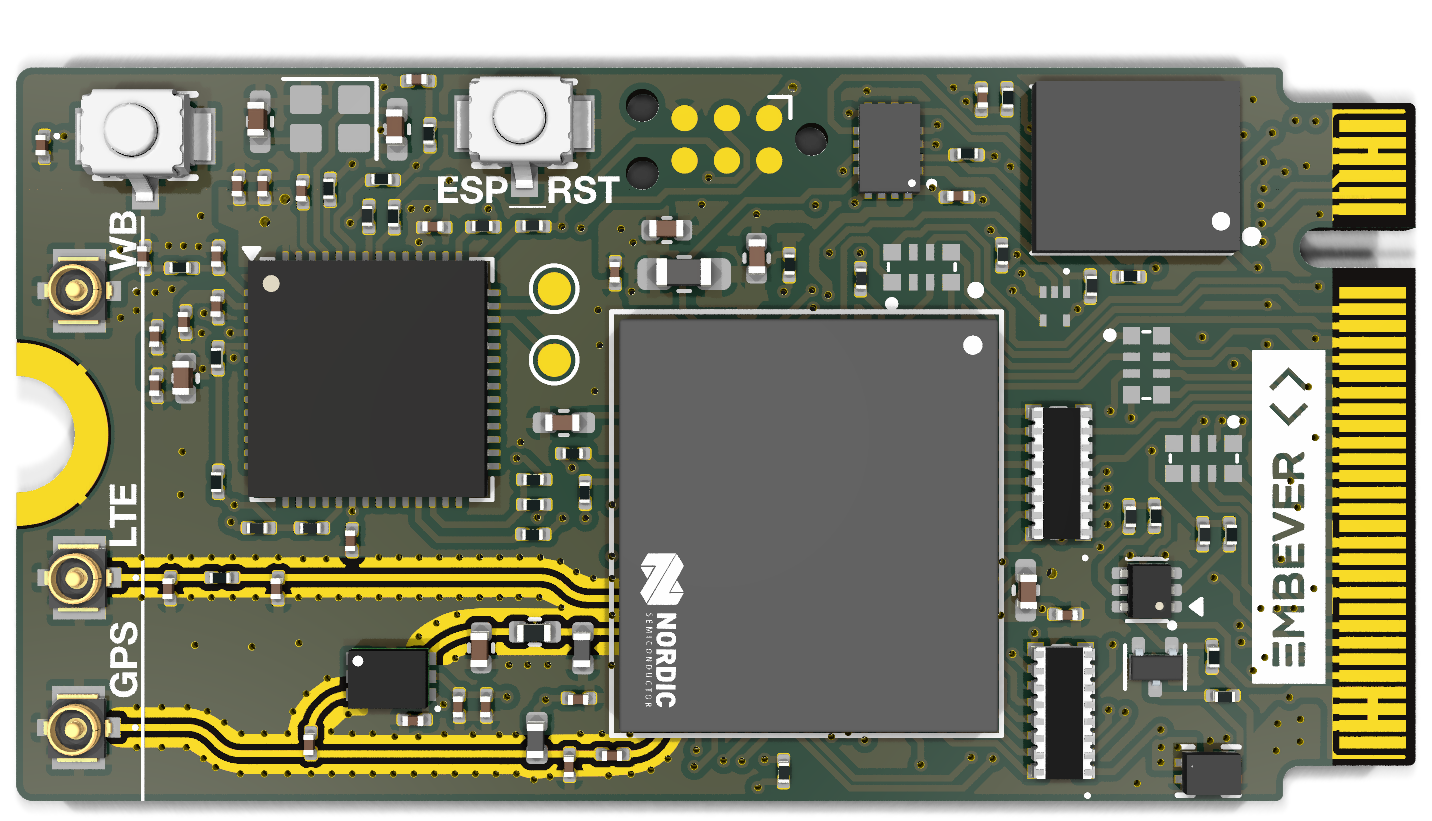

CaaM.2
For industrial applications
- 64 MHz Arm Cortex-M33
- 1 MB flash + 256 KB RAM
- LTE-M and NB-IoT Connectivity
- DECT NR+
- Bluetooth LE
- 240MHz Dual Core
- 4MB Flash + 2MB PSRAM
- M.2 interface
- Integrated SIM Chip
- Industrial Grade
Use Cases: OEM products, industrial automation, IoT gateways, smart building systems
Module Comparison
| Feature | CaaM Mini | CaaM Sora | CaaM.2 |
|---|---|---|---|
| LTE-M and NB-IoT | ✅ | ✅ | ✅ |
| GNSS | ✅ | ✅ | ✅ |
| Dead Reckoning | ✅ | ||
| DECT NR+ | ✅ | ||
| Bluetooth LE | ✅ | ||
| Flash Storage | ✅ | ✅ | |
| M.2 Interface | ✅ | ||
| Industrial Grade | ✅ | ✅ | |
| CaaM IoT Core | ✅ | ✅ | ✅ |
| Customizable | ✅ | ✅ | ✅ |
