CaaM Mini
Easy integration for low volume devices

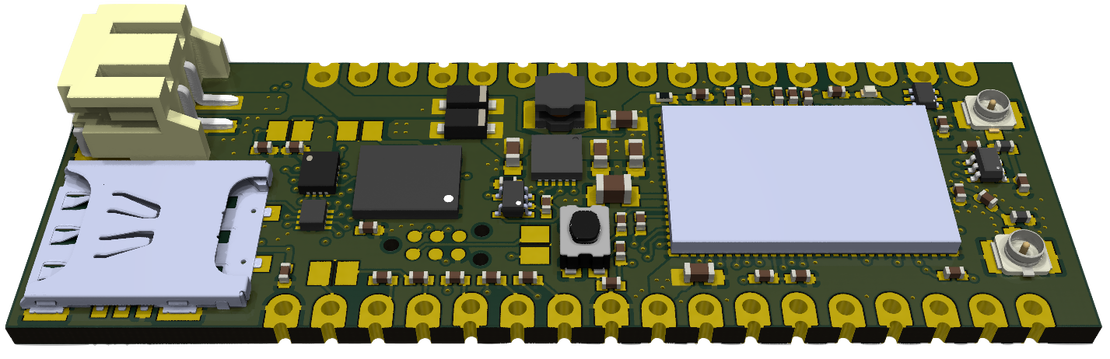

Embever's CaaM Mini is a development board featuring the nRF9160 SiP supporting NB-IoT, LTE-M, and GNSS. The board integrates a buck-boost regulator and can be operated by a battery. Castellated holes along the module edge let place the board directly on a carrier PCB. CaaM Mini offers a NanoSIM-card holder and integrated MFF2 SIM.
- nRF9160
- 64 MHz Arm Cortex-M33
- 1 MB Flash + 256 KB RAM
- LTE-M, NB-IoT Connectivity
- GNSS
- Supply
- Integrated Buck-Boost converter
- Li-Ion battery
- SIM
- Nano-SIM-Card holder
- Integrated Connectivity (MFF2)
Applications
- IoT Development
- Asset Tracking
- Environmental Monitoring
Gallery
