CosmoLink
Easy system integration with M.2
CosmoLink is a versatile and modular development platform for various LPWAN technologies. The board offers 2 MikroBUS sockets, STEMMA and QWIIC connectors with more than 4000 available extension boards. Its integrated wideband antenna offers a very high efficiency from 690 - 2700 MHz. An RF-switch is used to allow connecting the antenna to two separate RF-Paths. The M.2 B-Key socket supports various LPWAN modules for different radio technologies like NB-IoT, LTE-M, 5G-NTN, LR-HFSS, LoRa or Bluetooth. Using a Master Switch the peripherals can be connected to the M.2 module or to the integrated ESP32-S3 module. The board is equipped with the integrated battery charger BQ25186.
Features
- Power management
- USB-C
- Battery connector: JST SM02B-SRSS
- Integrated TI BQ25186 1S charger
- Integrated PCB Antenna
- 690 to 2700 MHz wideband
- Magnetic loop antenna
- Low hand-effect
- RF-switch controlled by M.2 COEX signal
- Other antennas on request
- M.2 B-Key 2240 supporting various radio modules
- 5G-NTN
- NB-IoT & LTE-M
- LR-HFSS
- etc.
- Extendible
- QWIIC® and Stemma
- 2 x MikroBUS
- Master Switch
- Nano SIM socket
- ESP32-S3 Module WiFi and Bluetooth
Applications
- OEM IoT products
- Industrial automation
- IoT gateways
- Smart building systems
- Asset tracking
- Environmental Monitoring

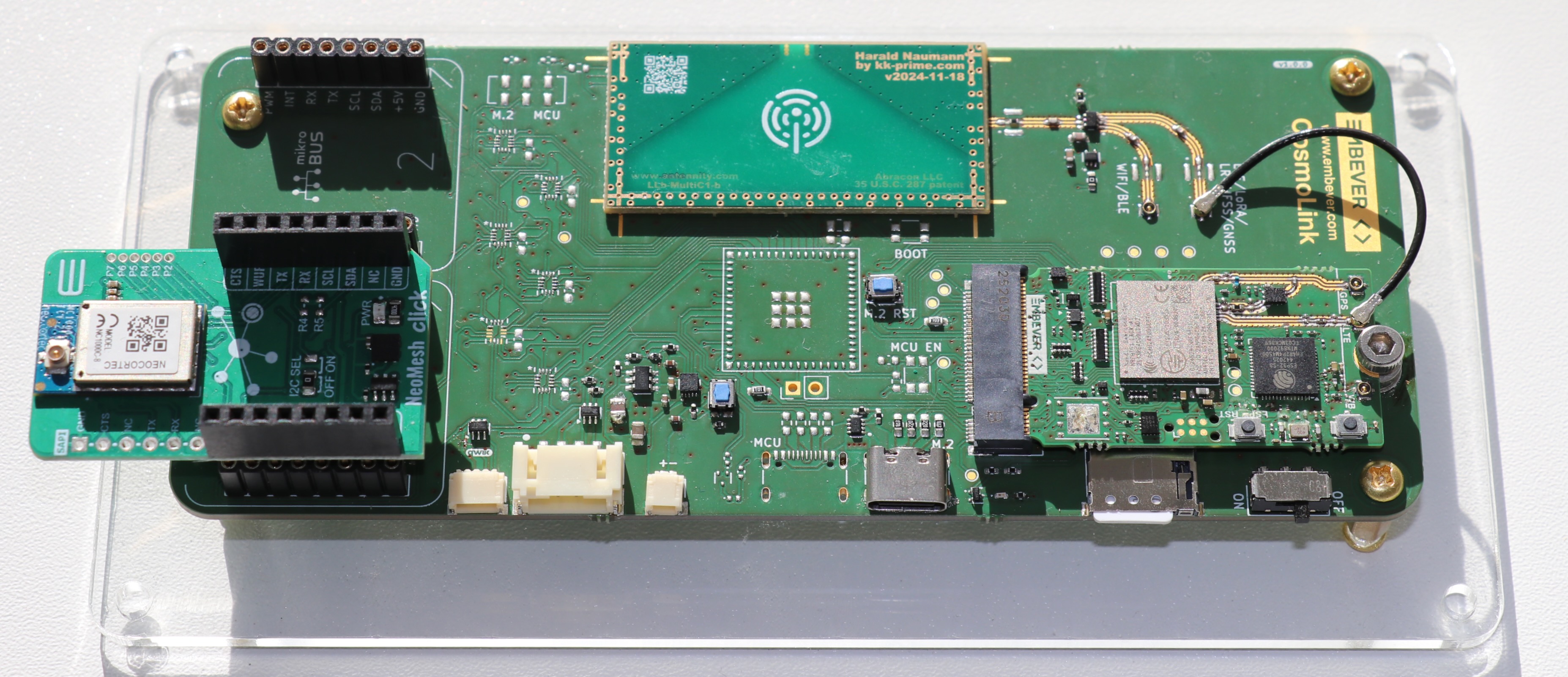

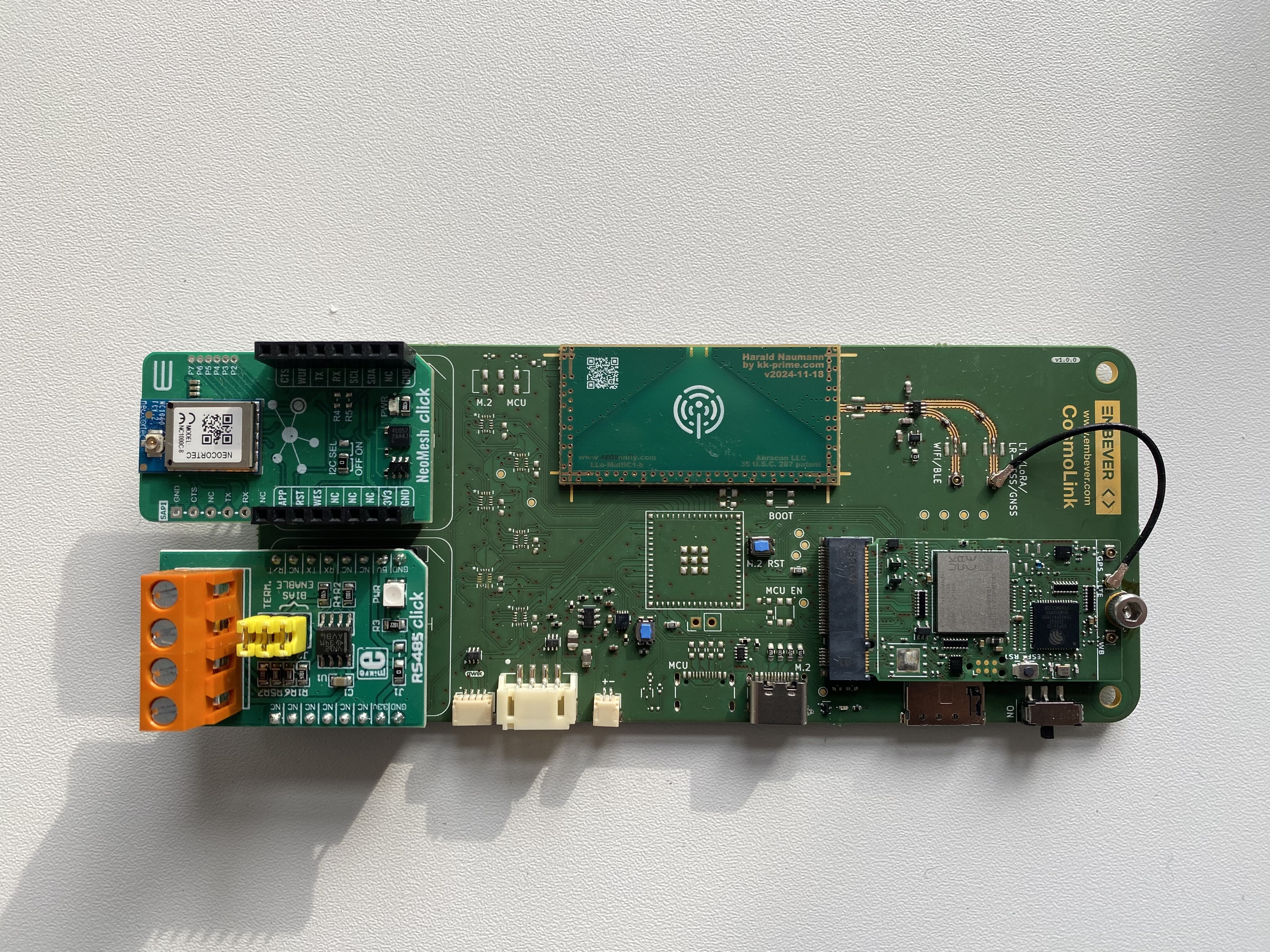

Gallery
