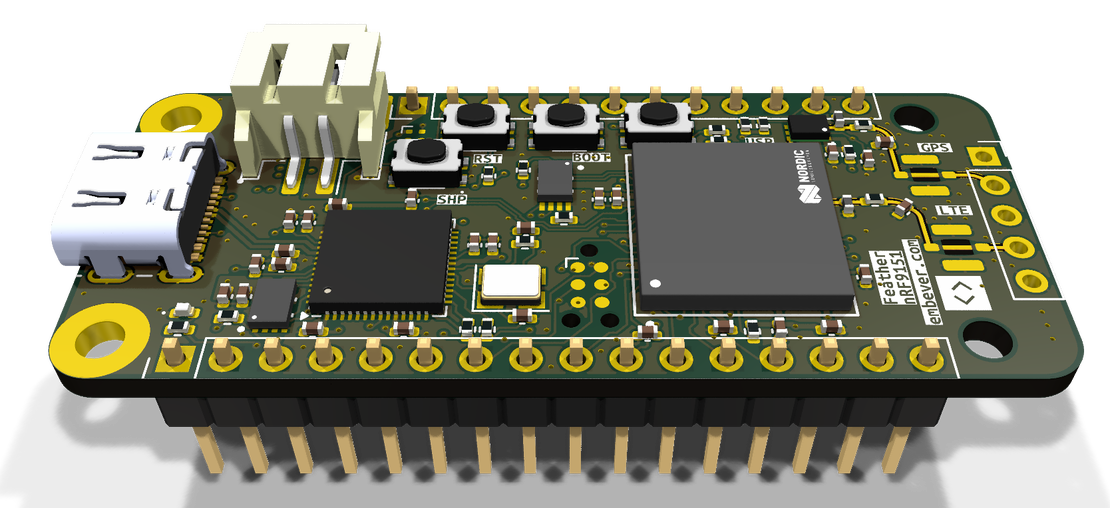

CaaM Feather
Feather-compatiple 5G-NTN development board
Embever's CaaM Feather is a development board featuring the nRF9151 SiP supporting NB-IoT, LTE-M, GNSS, 5G-NTN, DECT-NR+ radio. The board is compatible with the Feather specification. The on-board RP2040 is used as a CMSIS-DAP programmer and debugger for the nRF9151. The board integrates battery management with Nordics nPM1300 PMIC. Additional pin headers can be used to directly connect to RF lines without coax cables.
Features
- nRF9151
- 64 MHz Arm Cortex-M33
- 1 MB Flash + 256 KB RAM
- LTE-M, NB-IoT, DECT NR+, 5G-NTN Connectivity
- GNSS
- RP2040
- Dual Cortex M0+ processor cores, up to 133MHz
- 264kB of embedded SRAM in 6 banks
- 30 GPIO
- USB 1.1 Host/Device
- CMSIS-DAP
- nPM1300
- 32 - 800 mA battery charger
- 370 nA Ship Mode & 500 nA Hibernate mode
- Fuel gauge
- Controlled via I2C compatible TWI
- USB-C compatible
- Supply
- USB-C
- Li-Ion battery
- Nano-SIM-Card holder
Applications
- IoT Development
- Asset Tracking
- Environmental Monitoring

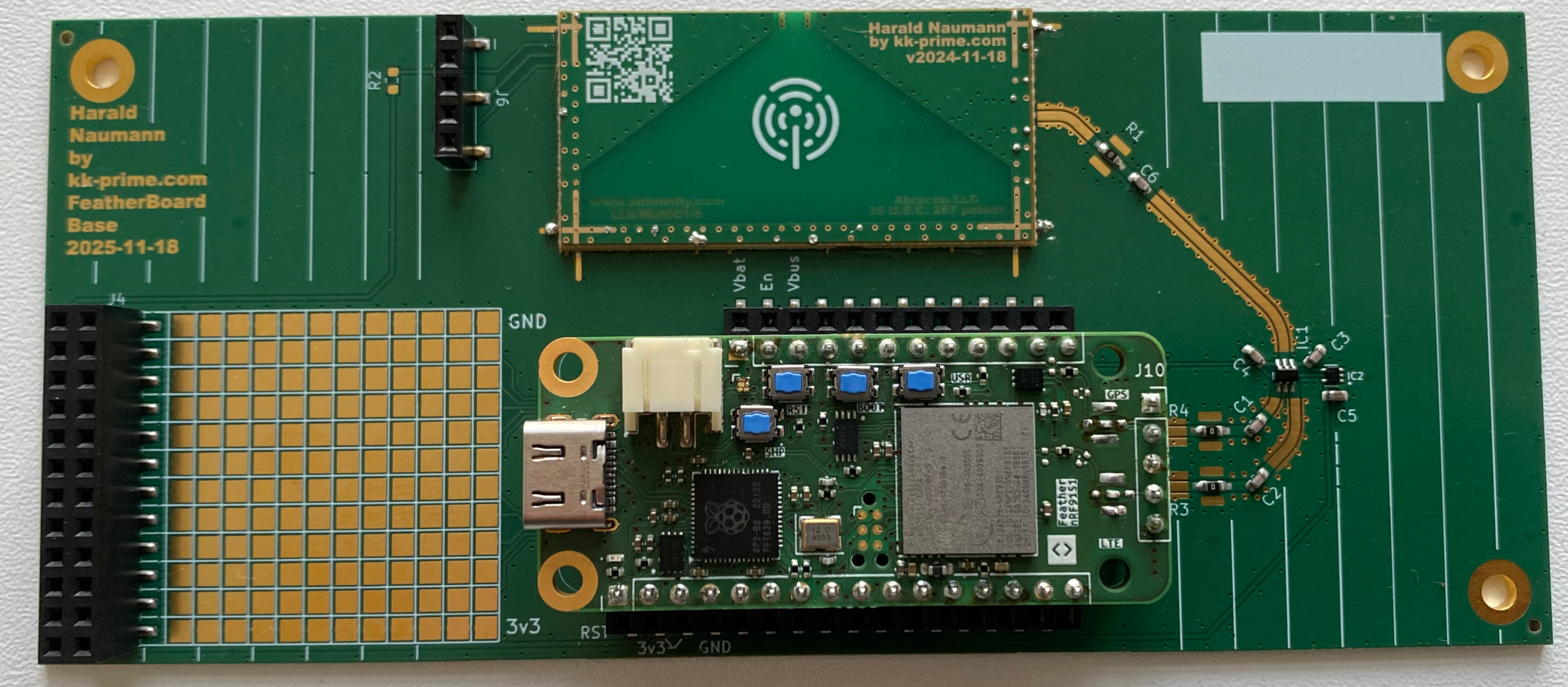

Gallery
