NanoLoop

The firstmodular reference design with flexible groundplane

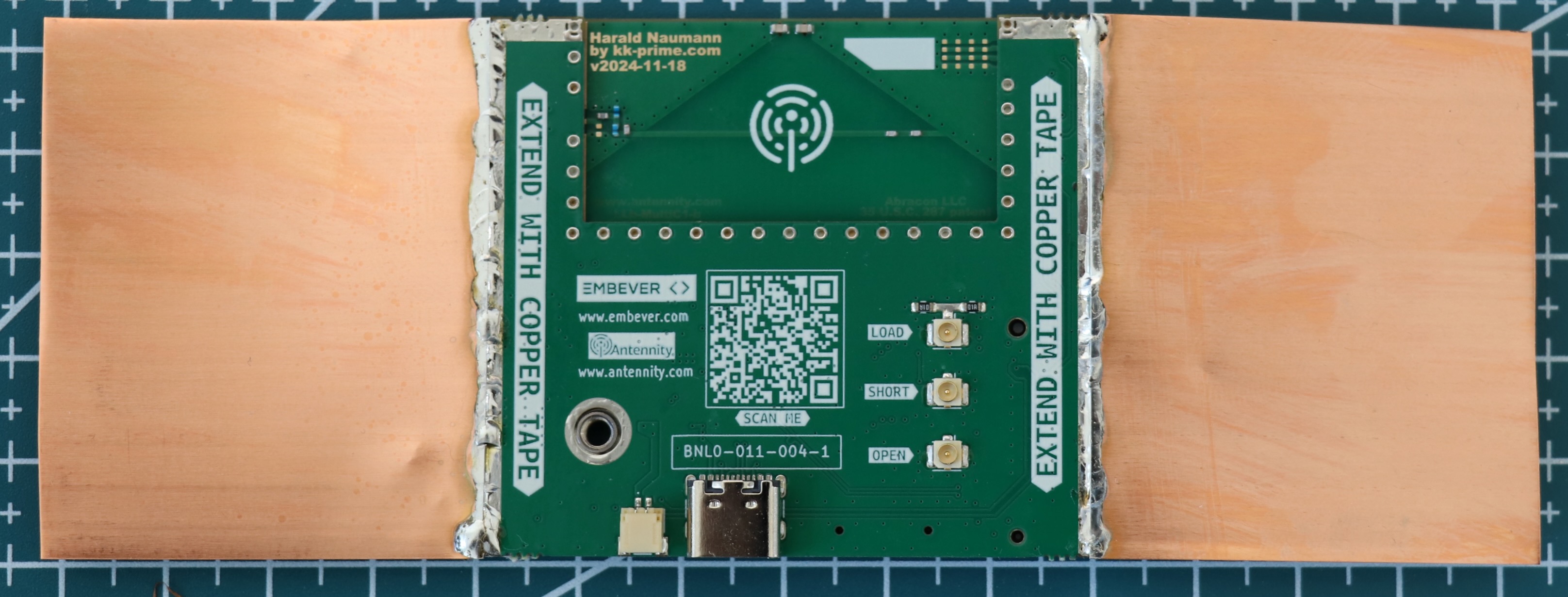

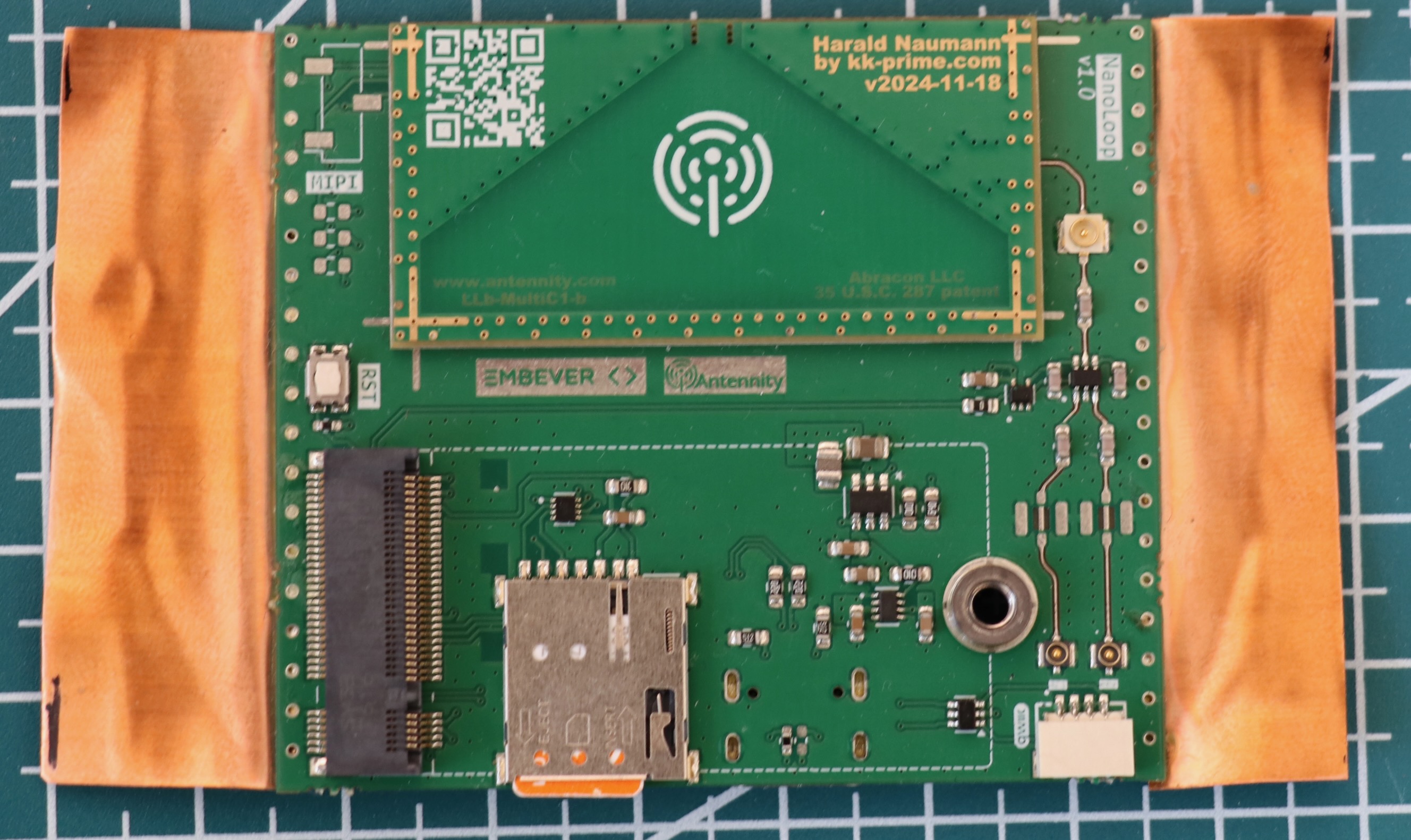

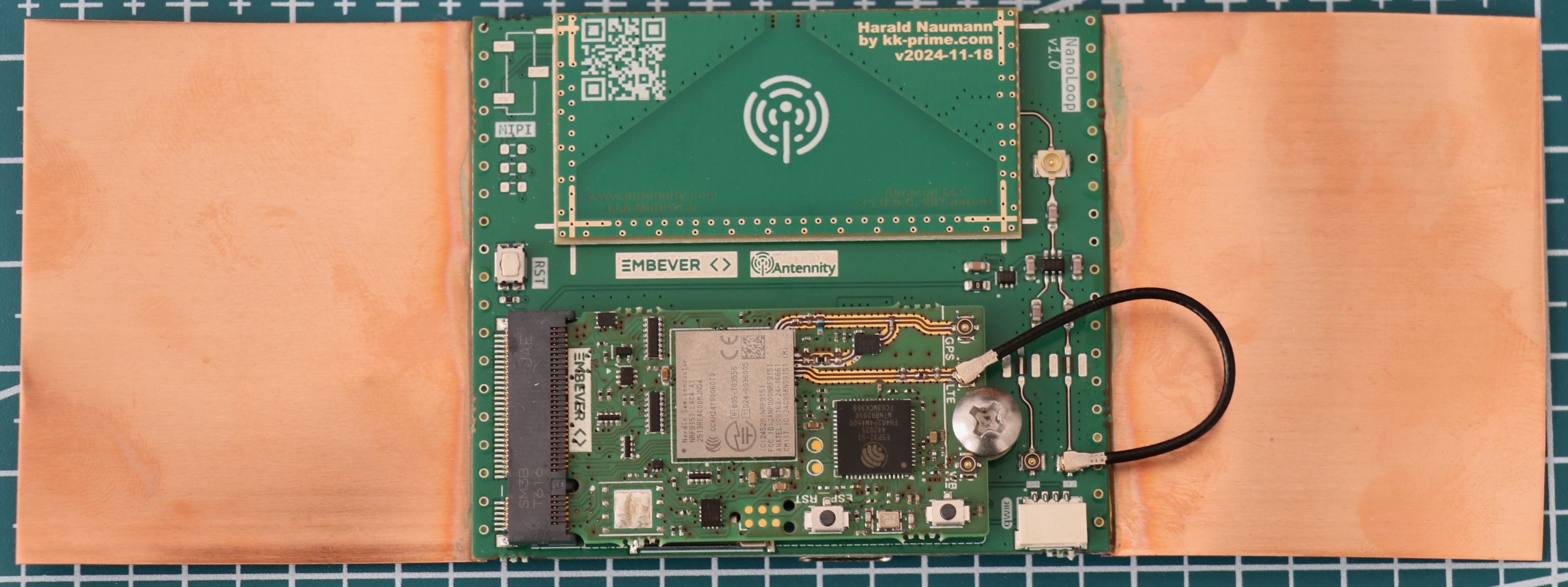

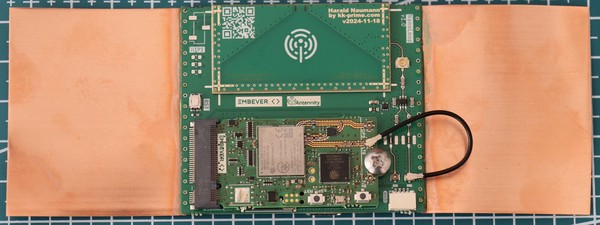

NanoLoop delivers 89% antenna efficiency with a magnetic H-field loop antenna that eliminates hand effects common in traditional chip antennas. Developers can test the impact of ground-plane size on RF performance, adjusting it from 140 mm down to 85 mm without changing the matching network. With a compact 5×6 cm form factor that can be extended with copper foil, NanoLoop supports various integrated antennas patch or magnetic (chip) and is compatible with M.2 modules for different radio technologies. It can also be used as an external antenna by connecting via coax cable (U.FL).
